403D

403D

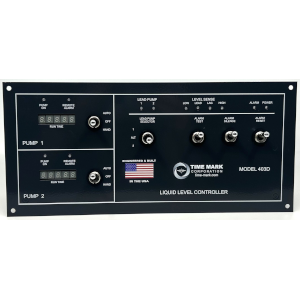

The 403D Liquid Level Controller provides central control of duplex pumping systems. The Model 403D includes pump alternating, visual run-time meters, hand-off-auto control and alarm outputs. Four level-sense inputs interface with float switches, pressure switches, or other level sensing devices which can provide a contact closure.

Time Mark products are only sold through authorized Time Mark distributors. The “Buy Online” button will open a new browser window on Octopart.com and display Time Mark distributors that sell your desired product.

If Octopart does not currently display the Time Mark product you desire, please call us Toll-Free at (800) 862-2875 or use the Find a Distributor link on our website to find a distributor near you.

Description

Dual run-time meters

Selectable lead-lag or automatic alternation

Four sensing levels

Alarm Outputs

Hand-off-auto controls

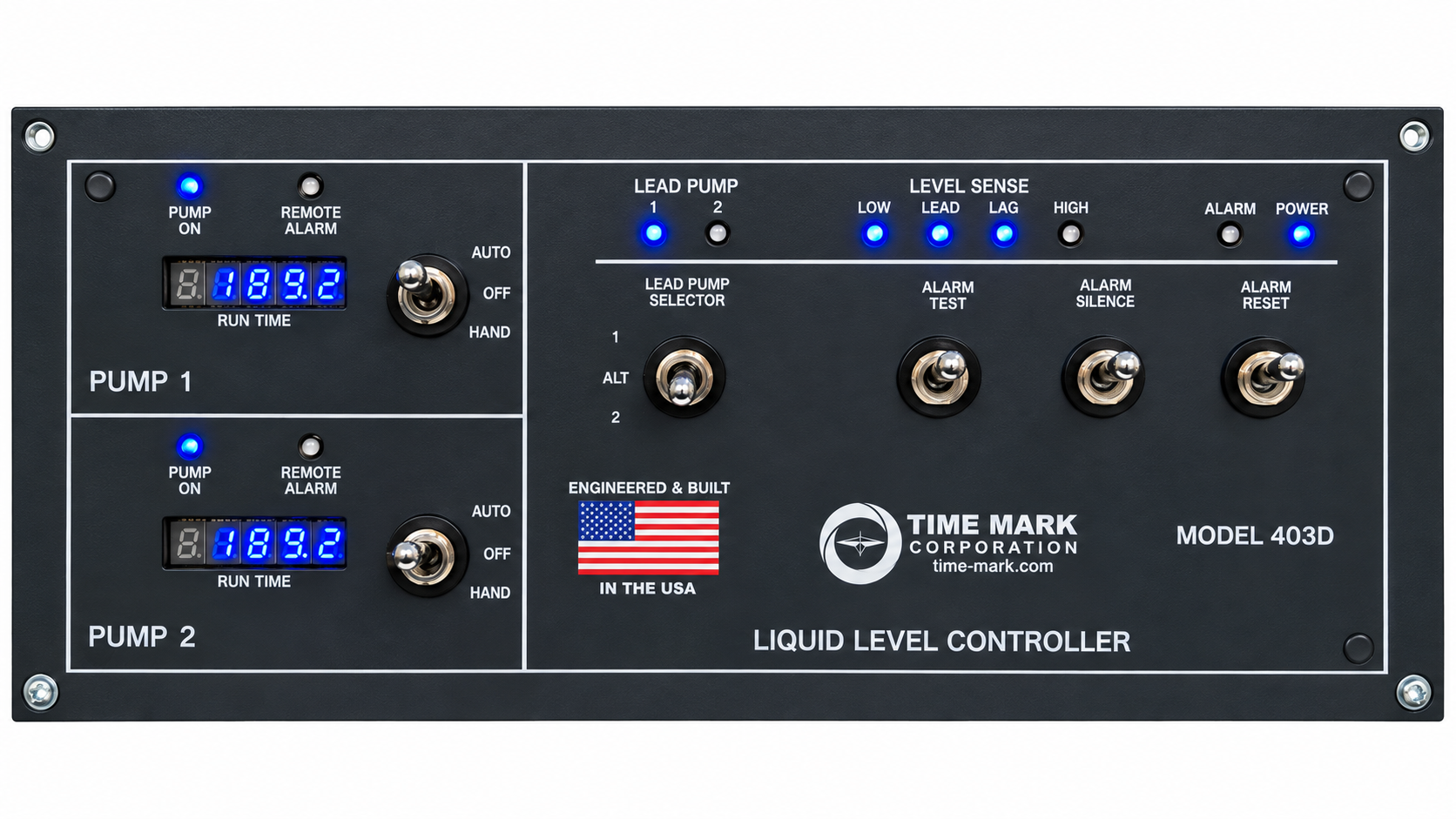

The Model 403D Liquid Level Controller provides central control of duplex pumping systems. It includes pump alternating, individual run-time meters, hand-off-auto controls and alarm outputs.

Four level-sense inputs interface with float switches, pressure switches, or other level sensing devices which
can provide a contact closure.

A SPST, normally-closed internal power-fail contact opens when AC power 120VAC is connected to the controller, and closes if power is lost or removed. Connections for external remote alarm contacts, which must remain closed for normal operation (or jumpered if not required), are supplied for each pump.
